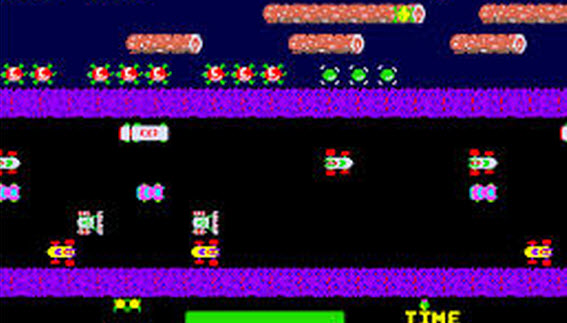

From the moment you press start Frogger plays a steady stream of music -- 26 different song fragments in all. You have to beat the first five levels and die to play them all! But even then there is one song you can never hear all the way to finish. The timer runs out before the main game song finishes. And even if you stop the timer (which I'll show you how to do) you still won't hear the complete song. There is a bug in the song data that shuts off the song's harmony voice near the end.
In this dig I'll show you how to fix the song data and unearth music buried deep in the Frogger ROM -- music never before heard since the game's release in 1981. Until now.
The intro 16 beats for the main song are from a Japanese song called Inu No Omawarisan (The Dog Policeman). Listen to it on YouTube.
The main song is from a Japanese anime called Araiguma Rascal. Listen to the opening music.
There are two bugs in the music definition of the main song. First, there is a missing eigth note beat around the thirty seconds mark. See the details here: Missing 1/8th beat
A few seconds later, the second voice drops out completely because of a mangled note. See the details here: Voice stops prematurely
There is a bug in the code that plays every note down a half step. This matters if you are trying to play along on the piano! See the details here: 1/8th beat
- Insert Coin: insertCoin.mp3 | CODE
- Die in Water: dieWater.mp3 | CODE
- Die in Road: dieRoad.mp3 | CODE
- Free Frog: freeLife.mp3 | CODE
- Snake on Ground: snakeOnGround.mp3 | CODE
- Race Car: raceCar.mp3 | CODE
- Pick up Friend: pickUpMate.mp3 | CODE
- Landing Safe: landingSafe.mp3 | CODE
- Running Out of Time: runningOutOfTime.mp3 | CODE
- Hopping: hop.mp3 | CODE
- Main Song (original/broken): songIntroAndMain.mp3 | Intro song CODE | Main song CODE
- Main Song Fixed: songIntroAndMain_fix.mp3 | .txt | .mid
- Game Over: songGameOver.mp3 | .txt | .mid | CODE
- Level Complete: songLevelComplete.mp3 | .txt | .mid | CODE
- Respawn: songRespawn.mp3 | .txt | .mid | CODE
- Combined (20) "frog home" songs: songzHomeXX_G.txt | .mid
- Frog home 1: songHome01.mp3 | CODE
- Frog home 2: songHome02.mp3 | CODE
- Frog home 3: songHome03.mp3 | CODE
- Frog home 4: songHome04.mp3 | CODE
- Frog home 5: songHome05.mp3 | CODE
- Frog home 6: songHome06.mp3 | CODE
- Frog home 7: songHome07.mp3 | CODE
- Frog home 8: songHome08.mp3 | CODE
- Frog home 9: songHome09.mp3 | CODE
- Frog home 10: songHome10.mp3 | CODE
- Frog home 11: songHome11.mp3 | CODE
- Frog home 12: songHome12.mp3 | CODE
- Frog home 13: songHome13.mp3 | CODE
- Frog home 14: songHome14.mp3 | CODE
- Frog home 15: songHome15.mp3 | CODE
- Frog home 16: songHome16.mp3 | CODE
- Frog home 17: songHome17.mp3 | CODE
- Frog home 18: songHome18.mp3 | CODE
- Frog home 19: songHome19.mp3 | CODE
- Frog home 20: songHome20.mp3 | CODE
I'll compare the code of three different sound boards and see how each approached sound in a slightly different way. All three boards are disassembled on this site:
Most sound effects fall into one of two categories: one-shot and ongoing. A one-shot sound is the audio record of an event. Examples include a laser firing, a frog jumping, and an alien exploding. These effects take a fraction of a second, and the code simply starts them and lets them run to completion.
An ongoing effect is the continuous sound of a game object. Examples include a racecar motor, a falling bomb, and a mother-ship traversing the screen. These effects usually take longer than a second and are often continuous. The code starts them up and stops them manually when the game object is removed.
Sound effects evolve over time. Imagine the quarter-second sound of an alien exploding. The effect starts loud and decays away to nothing by the end. The effect itself is mostly white noise (a random spread of frequencies), but the average frequency of the noise decays with time as well. The game code must change the volume and frequency of this effect from start to finish, which may not seem like a big deal. But a quarter of a second is a long, long time in the code world.
Music is the most complex sound effect of all. Musical notes are played at precise frequencies with precise timing. Unless you are coding up an ice-cream truck notes are not just pure sine waves that start and stop abruptly. Notes have complex waveforms with inherent harmonics (trumpets and flutes sound very different when playing the same note). Notes have volume envelopes; an instrument attacks a note hard but the note slowly (or quickly) fades with time.
Music usually plays as multiple notes (instruments) at the same time (harmony). Different instruments also play different rhythms of notes at the same time. For instance, a base groove running beneath a main melody.
There are usually limited sound resources. Only so many effects can be playing at any one time. When a sound effect needs to be played the code must look at what sound effects are currently playing and decide whether to preempt one or to ignore the new sound effect. Can a continuous sound (like music) be interrupted momentarily and then restarted? Resource scheduling is tedious. Sound effects are not something that is just added to the code later as to spice it up. Sound is an integral part of the code from the beginning.
Most arcade games use a dedicated sound board with its own CPU and sound-effect code. The main game board sends requests to the sound board to start/stop effects. The sound board decides which effects have what priority and how to schedule simultaneous sounds. The sound board manages all the simultaneous effects as the sounds evolve over time. The sound board processes music scripts.
Early arcade sound hardware provided a number of channels -- one channel for single playing sound effect. The hardware allowed the code to change the frequency and the volume of the channels independently.
The General Instruments AY-3-8910 sound chip was popular in arcade games and computers in the 80's. A single chip provides three independent channels. A sound board often used multiple AY chips. You have heard the AY voices in classics like 1942, Frogger, burger Time, Journey, Jungle Hunt, Scramble, Spy Hunter, Time Pilot, Tron, and Two Tigers to name a few.
The AY chip provides three independent voices labeled A, B, and C. A mixer register configures each voice as either a TONE, or NOISE, or off. Each voice has a 12-bit frequency control for its tone.
The voices have independently controlled frequencies. But the NOISE base frequency is controlled with a separate register. NOISE can thus be played through multiple voices, but the frequency is the same on all of them.
Each voice has an independent volume control register. The chip also has one complex volume (envelope) control circuit that can be configured to control a voice's volume. There is only one of these circuits to share among the three voices.
The envelope control has three registers to control is pattern, period, and repeating nature. A fast on/off warble that repeats is great for a firing laser sound. An envelope that dies off once is great for a gunshot (a NOISE effect). Since there is only one envelope control, it is impossible to have two sound effects using separate envelope controls at the same time.
The AY-3-8910 provides two general purpose 8-bit TTL compatible input/output ports. Sound boards often use these I/O ports receive commands from the main board.
Time Pilot uses a Z80 CPU and two AY-3-8910 chips. Moon Patrol uses a 6803 CPU and two AY-3-8910 chips. Frogger, the earliest board, uses a Z80 CPU and just one AY chip. Frogger is mostly two-voice music with a third voice for sound effects. Three voices were plenty.
Frogger and Time Pilot are both by Konami. They used similar solutions to sound. Both boards use a Switch Capacitor Audio Filter network. Each AY voice has two capacitors, 0.047uF and 0.220uF, that can be switched into the audio path. There are four possible filter capacitance configurations: none, 0.047, 0.220, or both added (0.267).
Frogger uses a Z80 CPU and 1 AY sound chip (3 voices). Konami included a SCAF on evolutions of the sound board. Time Pilot uses a Z80 and 2 sound chips. Moon Patrol uses 2 AY chips and a 6801 CPU.
Sound evolves over time. A thread is the code that changes the volume and frequency of a single sound effect over time. At any given moment there could be several threads manipulating different simultaneous sound effects.
Frogger and Time Pilot use a common approach. For Time Pilot there are six possible threads each tied to one of the six AY channels (two chips times three voices each). If a laser-blast is assigned to thread two then channel B of AY chip 1 is dedicated to the laser-blast from start to finish. Frogger has three threads mapped to its three voices (one chip).
Moon Patrol has six voices but only four threads. As we will see shortly, Frogger and !TimePilot map threads to channels with each thread having one channel. !MoonPatrol maps individual sound effects to individual channels with a thread. A thread manages several channels.
All three sound boards are time-driven. A main loop "ticks" at regular intervals and runs all threads for a brief time. Then the loop waits for the next tick and processes all threads again. The main board interrupts the loop briefly to request a new sound command. The interrupt service looks for an available thread to start the new sound on (see below).
The Moon Patrol main thread loop "ticks" at 250Hz. Time Pilot ticks at 175Hz. Frogger ticks at a blazing 700Hz (but only has three threads to process).
In Frogger and Time Pilot, the individual threads are implemented as Z80 code. Each sound effect has two routines: an initializer and a player. On the first tick of an effect the initialzer sets up the capacitors and initial states of the sound. From then on the thread calls the "player" routine on every tick. The player routine returns a flag to tell the main loop if the sound has ended or if it should continue next tick.
Moon Patrol, on the other hand, uses an interpreted language to implement the threads. Sound scripts are written in a domain-specific-language that contains jumps and subroutine calls and complex commands dedicated to sound. Why the trouble?
The pure-Z80 code requires the sound effect code to be aware of the threading. Instead of designing a sound effect from start to finish the developer has to build in return-and-come-back points in the algorithm to "give up the ball" for the other threads.
With the domain specific language, however, the sound script is developed from start to finish in a straight line without any knowledge of how/when the CPU breaks away to service the other threads. The sound algorithm is more straight-forward, but it requires the developer to learn a new (invented) language.
With the domain specific language the developer gets to focus on sound effects. The commands in the language are sound-specific. Sound developers don't have to be experts in Z80 programming. But the domain specific language requires an interpreter which eats up code space in ROM and CPU cycles when running.
I'm sure that's not what the designers called it -- MPSL. The Moon Patrol page describes these commands in great deal, but a quick overview will aid the discussion here.
There are "simple" commands and "complex" commands and commands to control program "flow". The flow commands are STOP, CALL subroutine, and RETURN from subroutine.
The simple commands allow the MPSL program to write to a value to any register on either chip with the REGISTER. The MPSL program gives the register number and the new value. There is a command to SET_VOLUME of a voice (voices 1-6). There is a command to set the automatic DECAY_SPEED of a voice.
There are three complex commands implemented in the code. REGISTER_SAMPLES plays a list of values to a single register one value every tick. It is only used in the UFO explosion effect. The TOGGLE_REGISTER command writes an alternating value to a single register every tick. This command is never used. There is a SWEEP command to change the value of a register from a starting value to an ending value over a specified time value.
There are usually multiple sound effects playing at the same time. Sound effects and music come and go independently of one another. Scheduling is the process of deciding which sound effects should be started on which threads. Sound effects have priorities. The coin-inserted sound, for instance, might be more important than a missile sound. If a missile sound is playing and a coin is inserted the scheduler can stop the missile sound and start the higher priority coin sound.
Frogger has 24 different sound effects that the main game board can request by number. The sound board uses a table to look up the priority of a sound. The higher the priority value in the table the more important the sound is. The frog-hopping sound, for instance, has the highest priority -- it will always be played. The scheduler will stop the lowest priority command and start the highest priority.
The separate music voices are handled as separate sound effects. The main board starts them one right after the other. The support (or harmony) voices have a lower priority, and if a lot of sounds are played the background voices will drop out.
Time Pilot has 28 different sounds that map to the six threads. Like in Frogger, each sound has a priority. But instead of looking up the command number in a table, the command number IS the priority. Thus if all six threads are playing sounds then command 11 (Squad Appears) will preempt command 3 (1910 bomb).
Letting the command number be the priority makes the sound board simpler. But it means that the priorities can't be changed without changing the main code. In Frogger, the priorities are in a table in the sound board. They can be changed without modifying the main code.
The Moon Patrol scheduling is radically different. Voices 1, 2, and 3 are dedicated to 3-voice music on thread 0. When the player's car explodes thread 0 stops the music and plays a 3 voice complex explosion effect.
During game play, the music is only 2 voices running on thread 0. The music plays on voices 1 and 2. Thread 1 is used to play continuous-alien-sounds on voice 3. Continuous sounds are the space-plant and the UFO-flying.
Voices 5 and 6 are dedicated to the car-jumping sound with thread 3. There is a lot of jumping in the game. The dedication is a good policy.
Thread 2 has full control of voice 4. There are four sounds that share that thread/voice. They use the priority-preempting schedule like Time Pilot and Frogger.
Designing music is an artistic process that involves a starving composer and a piano. Rendering that music is the programmer's job and involves managing precise musical frequencies, precise musical timing, and note envelopes for starting and stopping.
Most modern pianos have 88 keys, each with a very specific frequency. The MIDI electronic music standard defines 128 note numbers. Note 60 maps to "Middle C", which has a frequency of 261.63Hz. The AY uses two registers to define a frequency value. But there are far fewer possible frequencies in music.
Frogger and Time Pilot use a note table to map a note number to a two-byte frequency. Remember the Time Pilot code is an evolved form of Frogger. Music processing is nearly identical, but Time Pilot adds some new features.
A song doesn't generally bounce all over the list of possible notes. The notes of a song are usually all with the same two or three octaves. Frogger and Time Pilot take advantage of this by defining a note as a five bit number (0 -- 31) added to a base note number. The base note number is set at the beginning of the song. This defines whether the music is a low instrument (like a base groove) or a higher main melody.
Moon Patrol in stark contrast has no note table at all. In fact it has absolutely no music processing at all. Music is coded just like all other sound effects. The notes are played by stuffing a two-byte value into the AY frequency registers for each note with the REGISTER command. This seems inefficient, but the upper byte of the two-byte value rarely changes. The music script ends up setting the AYs upper byte once and then changing the lower byte for each new note. Like Frogger and Time Pilot, the upper byte ends up defining the base note value and the lower byte ends up defining the individual notes.
Frogger and Time Pilot use 5-bit note numbers 0 -- 31. The upper three bits define the note length. The note length is converted to a power of two. For instance, a note length value of 1 is the shortest note. A value of 2 is twice as long as the shortest value (1*2 times longer). A value of 3 is twice as long again (1*2*2=4 times longer). A value of 4 is twice longer still (1*2*2*2=8 times longer).
This notation maps well to music, which is defined mostly in notes with power-of-two lengths like whole-notes, half-notes, quarter-notes, eighth-notes, etc. Music does allow for dotted notes and ties between notes that can't be represented as a power of two. But most music encodes nicely.
The base music interval -- the shortest note -- is configurable for the song. This is simply a count of the base ticks. This value defines the base tempo of the song. The Frogger code decrements the volume of the playing note automatically. The Time Pilot code decrements the volume too, but the rate is configurable on a per-voice basis.
Again, Moon Patrol doesn't have any specific music handling at all. The sound effect scripts delay the proper note length before playing the next note. In Frogger and Time Pilot, music timing is coded more naturally in powers-of-two. In Moon Patrol the timing is code manually in tick counts.
Frogger and Time Pilot treat note number 0 as a rest (silence) no matter what the base note adds in. They treat the value 31 as a flag that the upper 3 bits represent a special command. Thus there can be 8 special commands.
For Frogger the special commands look like this:
0 Set the base note value to the next byte in the music data 1 Set the base tempo value to the next byte in the music data 2 Set the voice's volume to the next byte in the music data 3 -- 7 Turn voice off and end music processing on the voice (frees the thread for other sounds)
For Time Pilot the special commands look like this:
0 Set the base note value to the next byte in the music data 1 Set the base tempo for the voice to the next byte in the music data 2 Set the voice's volume to the next byte in the music data 3 Reset current note's amplitude 4,5,7 Turn voice off and end the music process on the voice (frees the thread for other sounds) 6 Jump to new music address (next two bytes in the music data are absolute address)
On the sound board the D1 and D0 lines are swapped for the first chip. This is no doubt a mistake in the hardware that was just corrected in burning the ROM. The second graphics chip has the same problem.
Main board writes a command to the board that appears in port A of the AY chip. The hardware automatically generates a RST $38 whenever a command is written. The ISR handles the scheduling. The main loop just plays whatever is scheduled.
Most sound commands are started and left alone. Some can be stopped and the main board sets an extra bit in the command to indicate "stop" instead of "start".
There are three threads to process commands. Each thread is hardcoded to one of the three AY voices. Each thread has a two-byte data structure.
The first byte of the two-byte structure is the command number 1 -- 24. A value of 0 means the thread is available for use. The second byte in the two-byte structure is the init-flag. If this value is 0 then the thread calls the sound command's initialization routine then sets the flag to 1. If the flag is 1 then the thread calls the sound command's continuation routine on every tick. The continuation routine returns a non-zero value to terminate the command.
There are three music-voice-structures used to manage music on any of the voices. Each structure has eight bytes. Byte 0 is the base delay counter. This is decremented each thread tick. When this value reaches zero it is reloaded from the global base-tempo value. On every other zero-crossing the volume of the voice is decremented by one.
Byte 1 is the note's delay value. This is decremented with every zero-crossing of byte 0. When this value reaches zero the note has ended and the music script continues to the next entry.
Bytes 2 and 3 are the pointer to the current entry in the music script.
Bytes 4 and 5 are the pointer to the base note number for the music. The music script defines notes 1 through 30 that are added to this base note.
Byte 6 is the current value of the note's volume as it decays away.
Byte 7 is the song's volume used to reload byte 6 at the start of every note.
There are several "process music on voice B" entries in the command table. They do exactly the same thing, but they have different command numbers and thus different priorities. This allows the code to make some background songs more important than others.
The interesting part is that the jump table points to different copies of the same code. It would have saved space to point the jumps to the same code. But the duplicated code is only 10 bytes per copy.
In order to hear all of the music in the main song you have to turn off the timer. Then you can sit patiently at the starting point and listen. Here is the patch file to turn the timer off (main board ROM) and fix the bug in the music.
;##$OriginalBinary frogger.26+frogger.27+frsm3.7 ; Stop the two-byte timer 089E: 00 NOP ;089E: 77 LD (HL),A 08A3: 00 NOP ;08A3: 77 LD (HL),A ;##$OriginalBinary frogger.608(76543201)+frogger.609+frogger.610 1134: C2 ; Noticeable sour note (Change to this so that voice continues) ;1134: DF ; SC06:Volume off and end song
The main song has two bugs in it. About 30 seconds, there is a missing 1/8th note beat. Then a little later, the 2nd voice cuts out because of a flipped bit (a bad note definition).
The bugs are described in detail here:
Here is the original song and the song after the fix:
